aCP
panels

Catalog of colors:

Common color seriesMetallic & Solid ColorsAnti-Scratch ColorsGlossy ColorsMirror, Brushed, Timber etc

Common color series

  • Pure White

  • Porcelain White

  • Anthracite

  • Pure Aluminum

  • Silver Grey

  • Golden Yellow

  • Brass Yellow

  • Gold Metallic

  • Brown Copper

  • Silver Metallic

  • Champagne

  • Grey Silver

  • Dark Grey

  • Dark coffee

  • Coffee

  • Space Black

  • ICBC Grey

  • Royal Blue

  • sky blue

  • Telecom Blue

  • Bark Blue

  • Police Blue

  • Telecom Green

  • Dark Green

  • ABC Green

  • post green

  • Light Rose Red

  • China Red

  • Rose Red

  • red

  • Red Coffee

  • Deep Rose Red

  • Bice

  • Youth White

  • Jade Metallic

  • Mid Yellow

  • Nacarat

  • Glossy White

  • Glossy Sky Blue

  • Glossy Telecom Blue

  • Glossy Light Green

  • Glossy Apple Green

  • Glossy Deep Blue

  • Glossy Black

  • Glossy Red

  • Glossy Wine Red

  • Parlato Svevo

  • Cherry

  • Walnut

  • Maple

  • Natural Cherry

  • Noble Cherry

  • Wenge

Metallic & Solid Colors

  • CH-SJ-8001 Flash Silver

  • CH-SJ-8011 Pure White

  • CH-SJ-8013 Off White

  • CH-SJ-8002 Silver Grey

  • CH-SJ-8014 Ivory White

  • CH-SJ-8049 Black

  • CH-SJ-8004 Champagne Silver

  • CH-SJ-8005 Grey Metallic

  • CH-SJ-8048 Galaxy Black

  • CH-SJ-8006 Champagne Golden

  • CH-SJ-8008 Flash Gold

  • CH-SJ-8061 Dark Grey Metallic

  • CH-SJ-8003 Aluminium

  • CH-SJ-8009 Brown Copper

  • CH-SJ-8034 C-Red

  • CH-SJ-8O37 Pure Yellow

  • CH-SJ-8016 Sky Blue

  • CH-SJ-8025 Post Green

  • CH-SJ-8038 Lemon Yellow

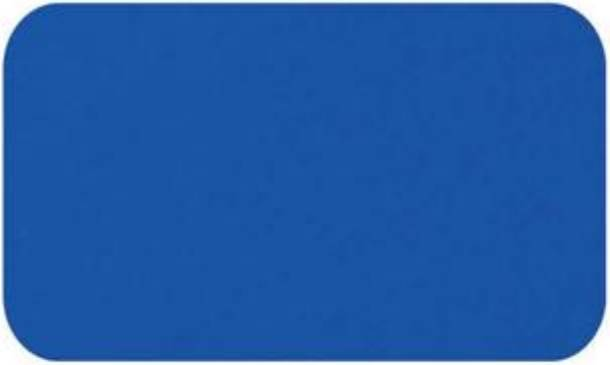

  • CH-SJ-8017 Telecom Blue

  • CH-SJ-8021 Apple Green

  • CH-SJ-8040 Orange Red

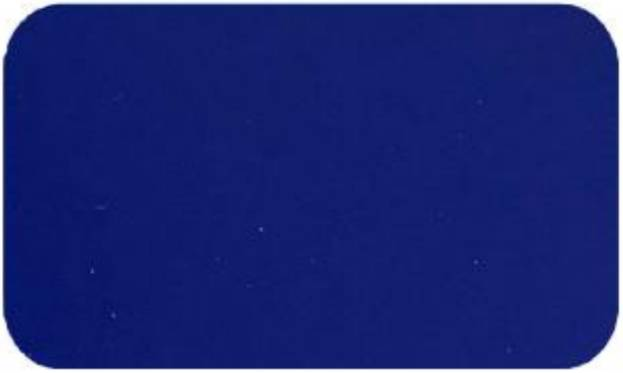

  • CH-SJ-8019 Sea Blue

  • CH-SJ-8046 Coffee Brown

  • CH-SJ-8051 Light Gray

  • CH-SJ-8052 Dark Gray

  • CH-SJ-8043 Deep Rose

Anti-Scratch Colors

  • CH-SJ2020-26 Anti-scratch Stone

  • CH-SJ2020-07 Anti-scratch Wood

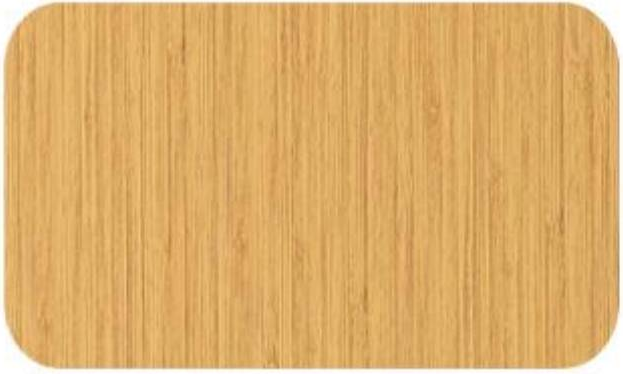

  • CH-SJ9915 Anti-scratch Wood

Glossy Colors

  • CH-SJ-8825 Glossy White

  • CH-SJ-8826 Glossy Red

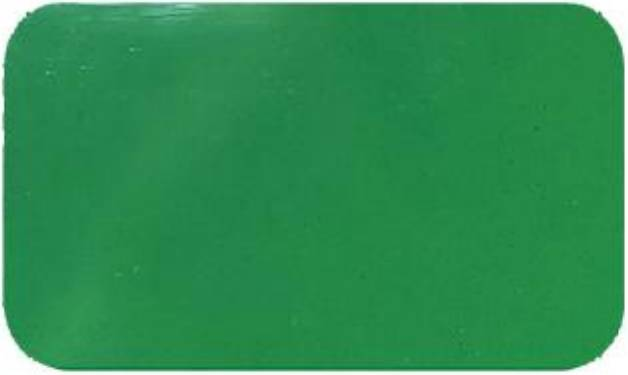

  • CH-SJ-8827 Glossy Green

  • CH-SJ-8828 Glossy Black

  • CH-SJ-8831 Glossy Yellow

  • CH-SJ-8832 Glossy Blue

Mirror & Brushed & Timber & Stone & Pearl Colors

  • CH-SJ-8822 Golden Mirror

  • CH-SJ-8823 Silver Mirror

  • CH-SJ-8053 Brushed Silver

  • CH-SJ-T1 Timber Look

  • CH-SJ-T2 Timber Look

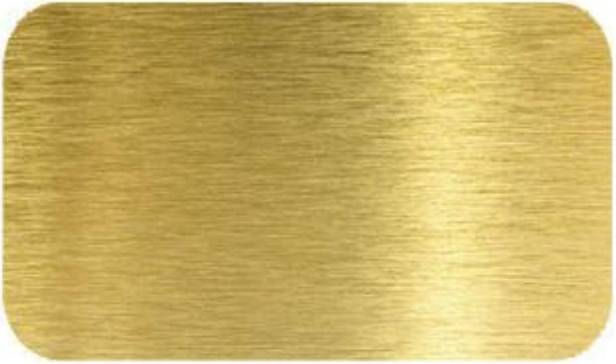

  • CH-SJ-8058 Brushed Golden

  • CH-SJ-T3 Timber Look

  • CH-SJ-S1 Stone Look

  • CH-SJ-8832 Glossy Blue

Aluminum-plastic composite panel

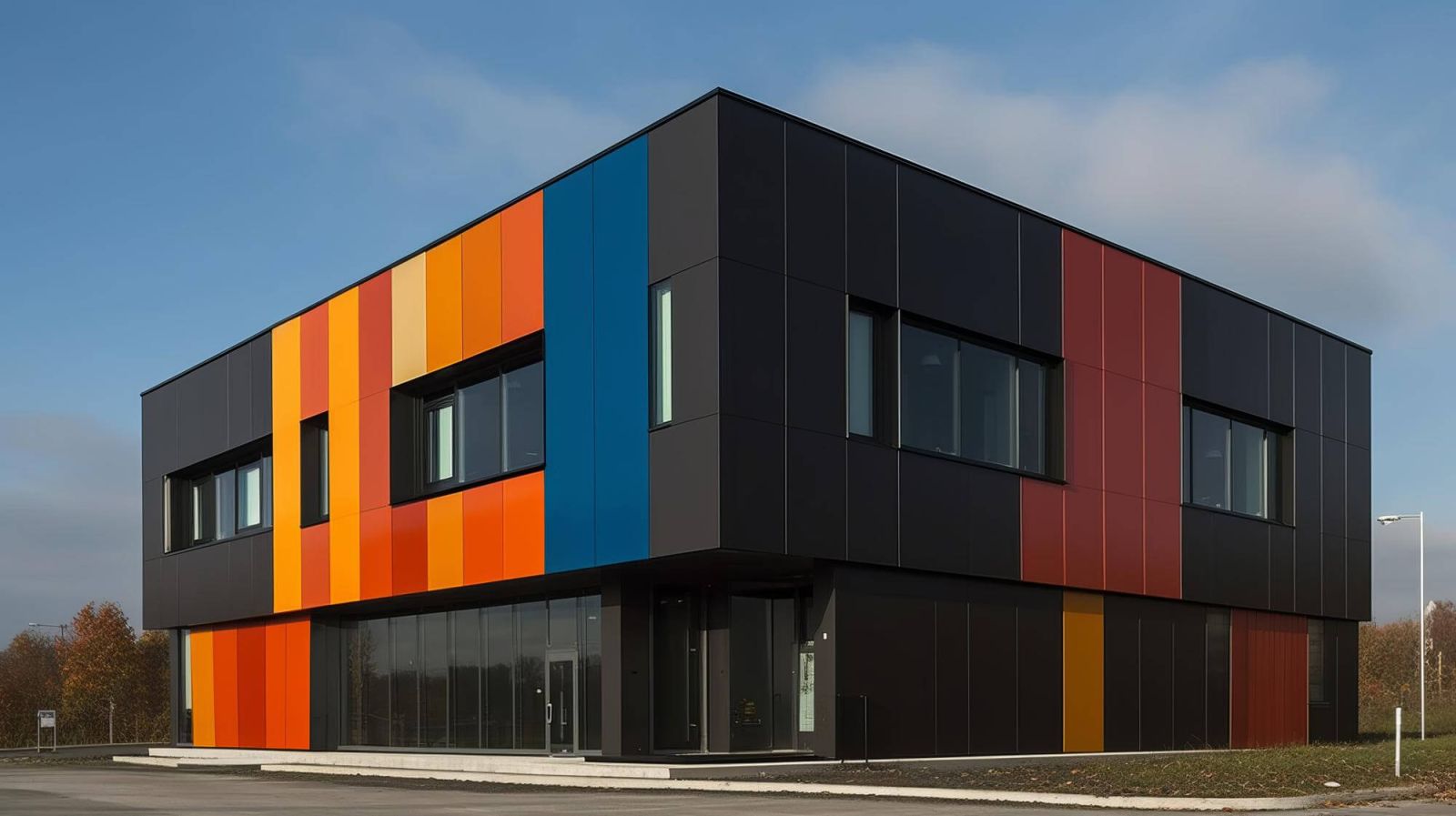

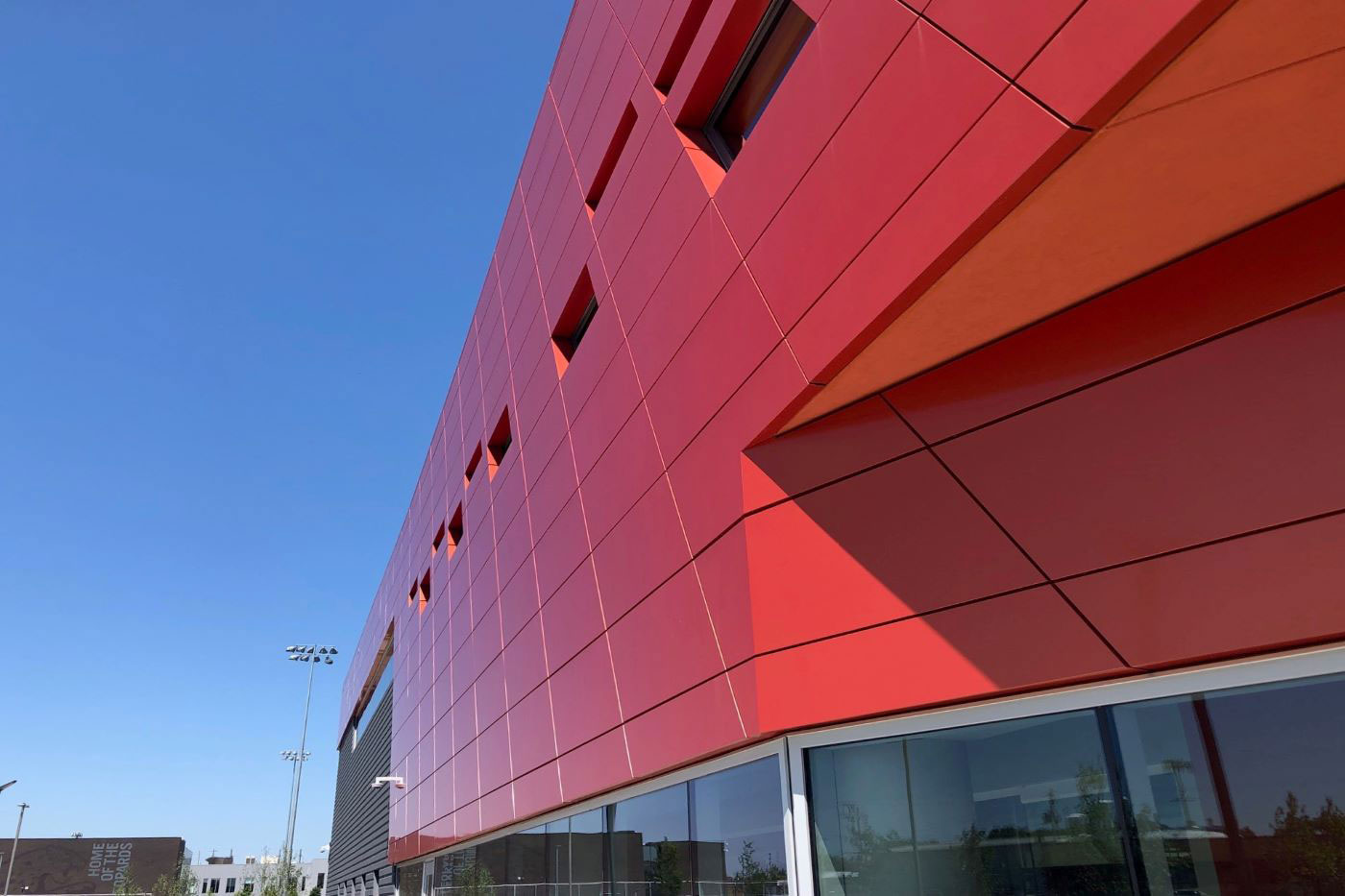

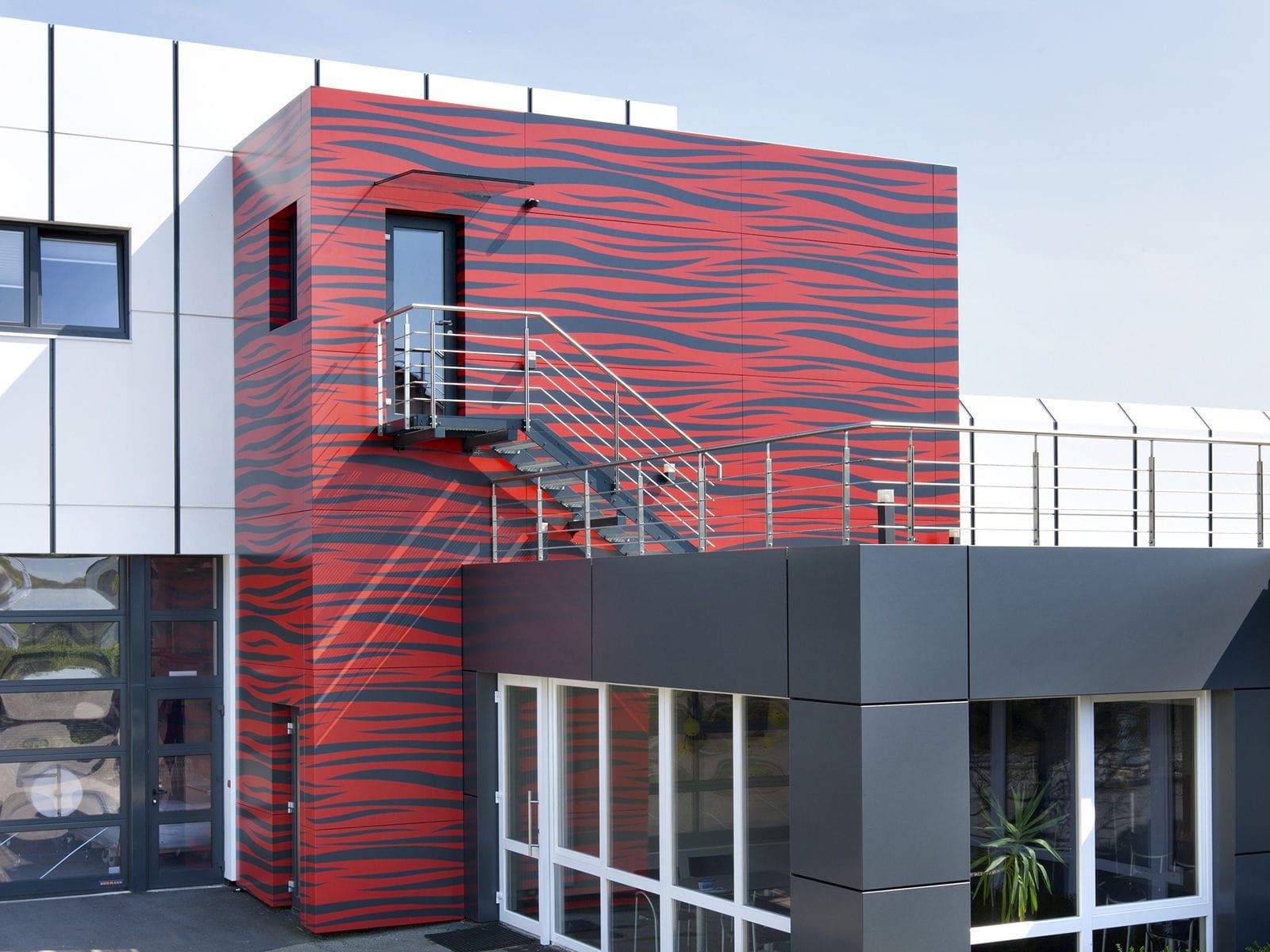

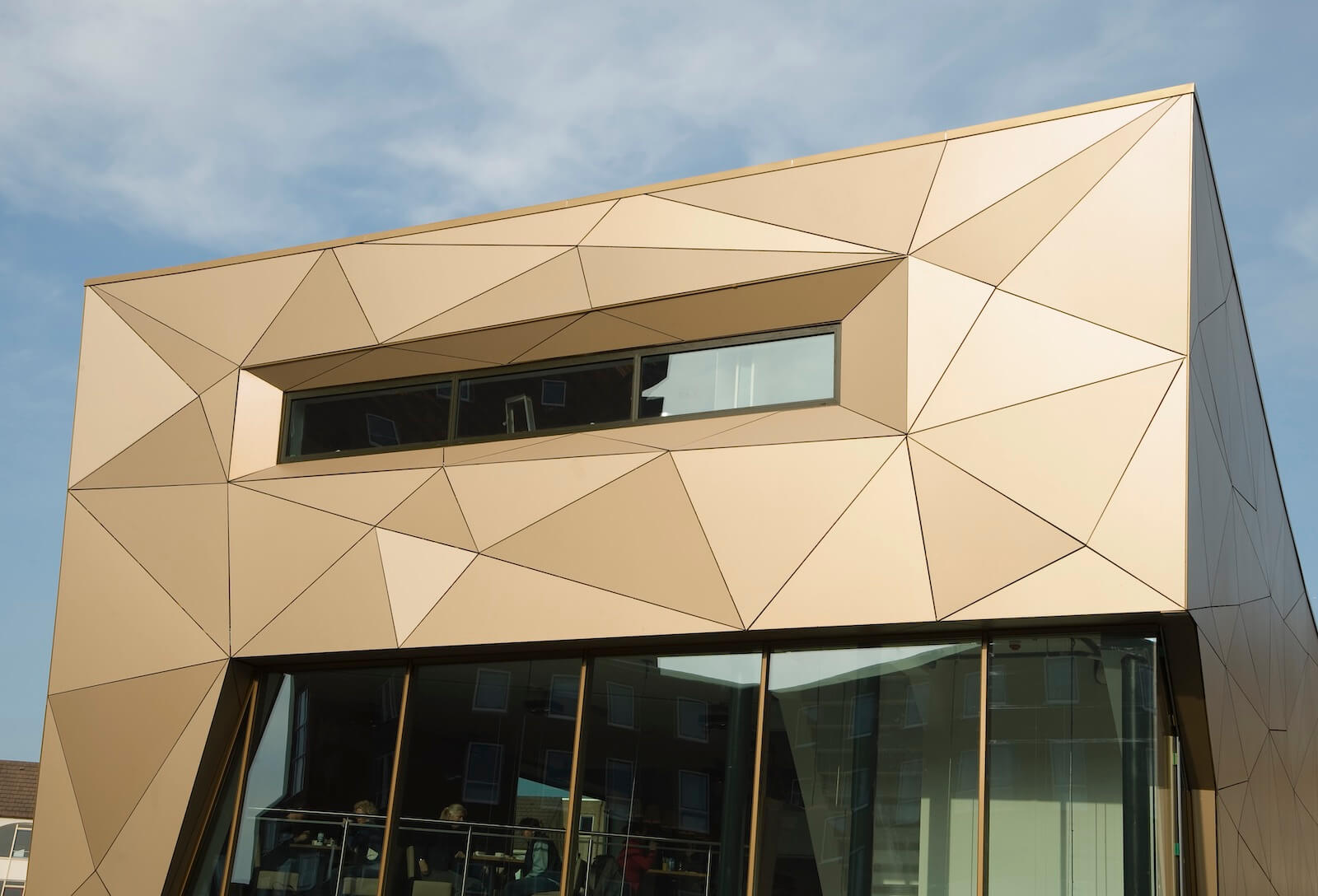

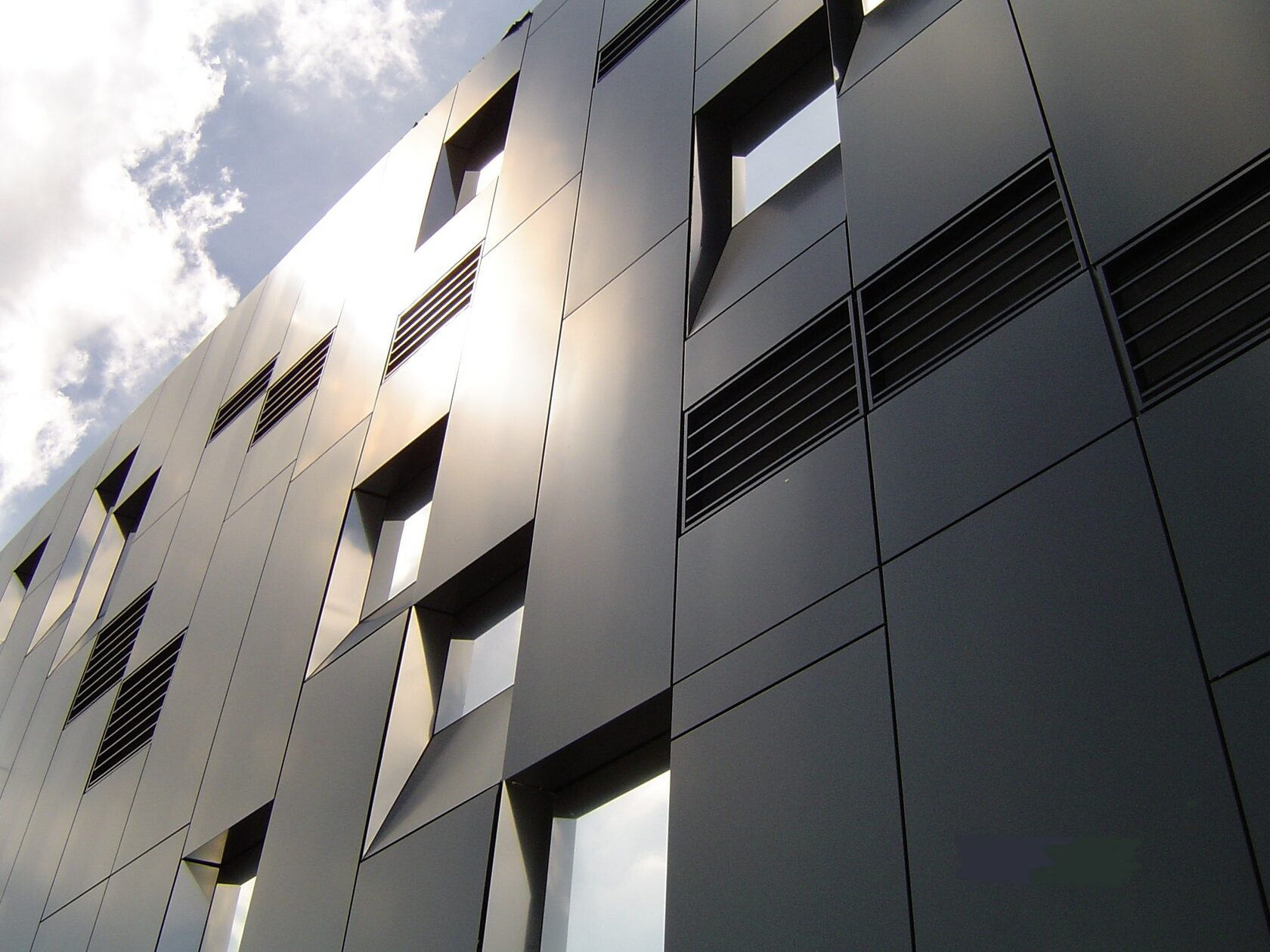

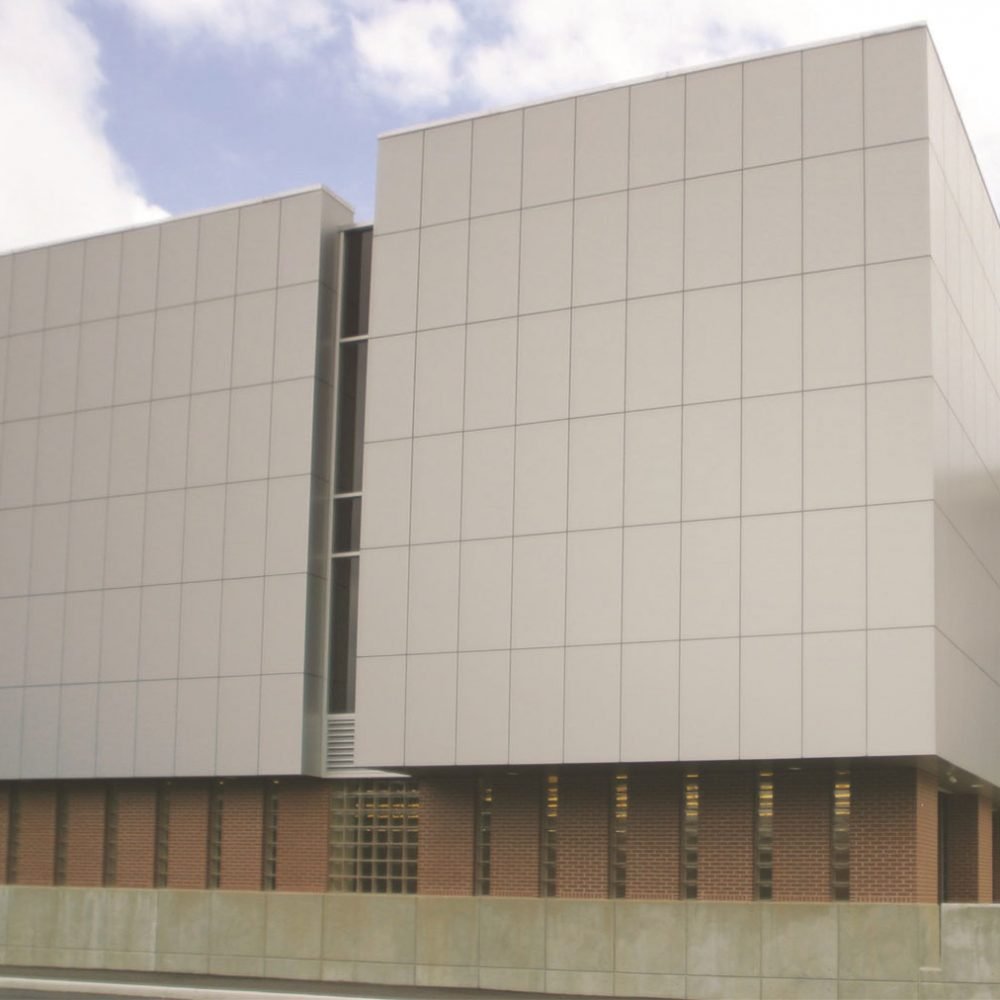

Due to the many advantages of aluminum-plastic panels in material properties, they are widely used in various building decorations, such as ceilings, column cladding, counters, furniture, telephone booths, elevators, storefronts, billboards, factory wall materials, etc., and have become the representative of metal curtain walls among the three major curtain walls (natural stone, glass curtain walls, and metal curtain walls). In developed countries, aluminum-plastic panels are also used in the manufacture of buses and train carriages, sound insulation materials for airplanes and ships, and design of instrument boxes.

Product Overview

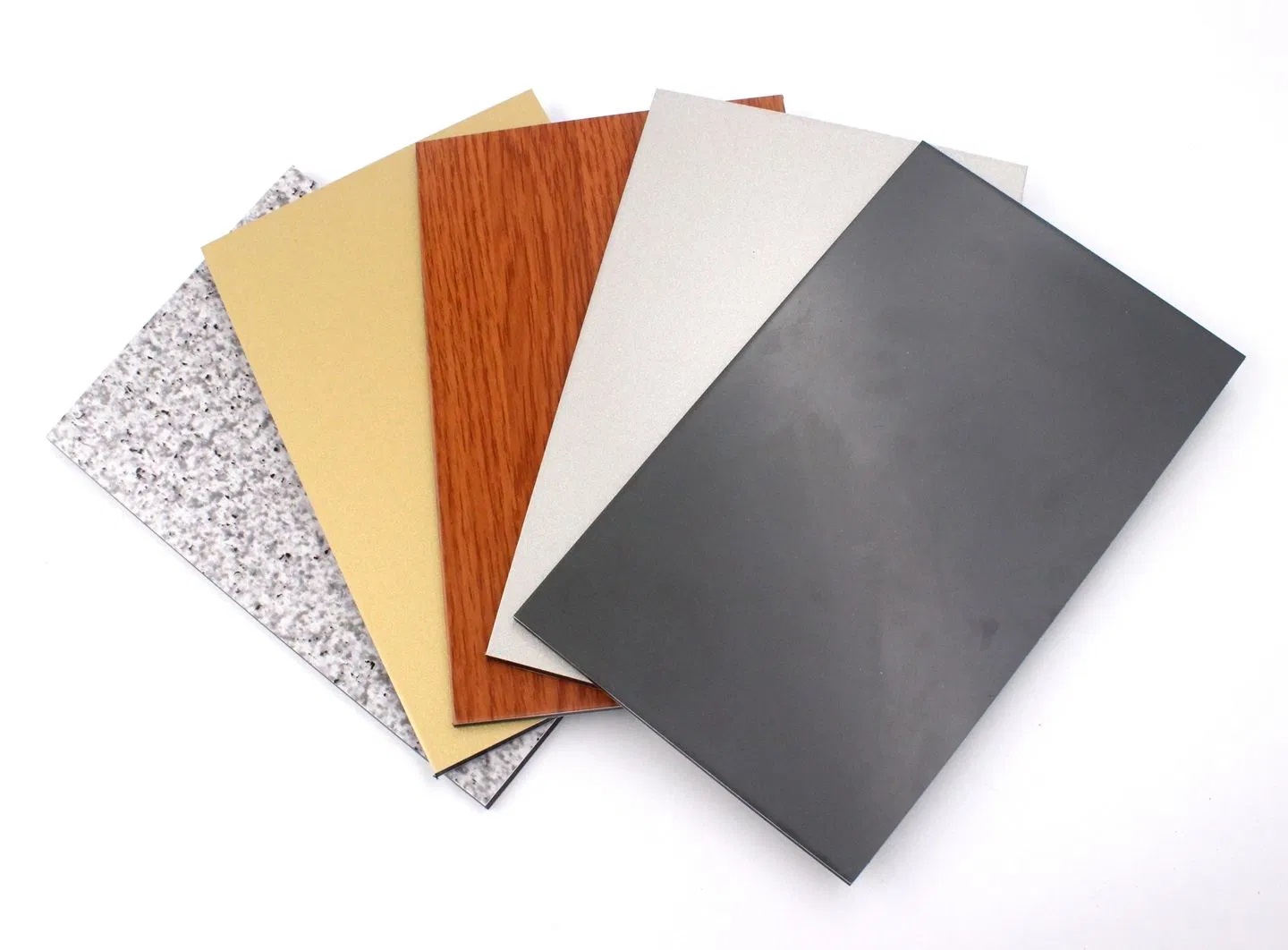

Aluminum-plastic composite panel, also known as aluminum-plastic panel for short, is a new type of material made of surface-treated and painted aluminum plate as the surface, polyethylene and polypropylene plastic mixture as the core layer, and processed through a series of processes. Since the aluminum-plastic panel is composed of two materials (metal and non-metal) with completely different properties, it not only retains the main characteristics of the original component materials (metal aluminum and non-metal polyethylene plastic), but also overcomes the shortcomings of the original component materials, and thus obtains many excellent material properties, such as luxury, colorful decoration, weather resistance, corrosion resistance, impact resistance, fire resistance, moisture resistance, sound insulation, heat insulation, and earthquake resistance; light weight, easy processing and molding, easy transportation and installation, etc. These characteristics have opened up broad application prospects for aluminum-plastic panels.

Aluminum-plastic composite panel product features

Aluminum corrugated core composite aluminum plate product features:

  • 1. Economical
    The product uses a variety of high-quality coatings and does not require long-term maintenance, eliminating the current high-rise large-scale building maintenance and upkeep costs. my country's cities are seriously polluted and need maintenance and cleaning after a few years of use. Due to its good self-cleaning properties, only neutral detergents and clean water are needed, and after cleaning, the board will remain permanently as good as new.

  • 2. Lightweight
    Aluminum-plastic panels are made of aluminum alloy and high-quality plastic. They are lighter than other decorative materials, reducing the weight burden of the material itself, facilitating construction and greatly shortening construction time

  • 3. Fire resistance
    The outer aluminum foil of the aluminum-plastic panel can protect the polyethylene core material and block heat conduction in the early stage of combustion. Its fire resistance meets international standards.

  • 4. Environmental protection
    The surface does not change and does not pollute the environment.

  • 5. High strength
    The high-quality aluminum surface has high strength, which greatly improves the strength of the aluminum-plastic panel and ensures the curtain wall's wind pressure resistance, earthquake resistance, leakage resistance, lightning protection, and impact resistance.

  • 6. Durability
    Fluorocarbon coated aluminum-plastic panels have the advantages of durability, weather resistance, high temperature resistance, wear resistance, and pollution resistance.

  • 7. Flatness
    Aluminum-plastic panels provide an excellent flat surface, meeting the modern architecture's pursuit of high visual perception.

  • 8. Easy construction
    Aluminum-plastic panels are easy to cut, trim, groove, and bend into various shapes such as arcs and right angles, and can be fully coordinated with decoration to design various shapes.

  • 9. Design flexibility
    Aluminum-plastic panels can be manufactured in distinctive colors and shapes  according  to  customer  requirements,  which  can  meet  the designer's unique design and achieve perfect decorative effects.

  • 10. Rich colors
    Our company provides more than seventy colors for customers to choose from (if a single color is required, the area must be no less than 400 square meters).

Usage Guidelines

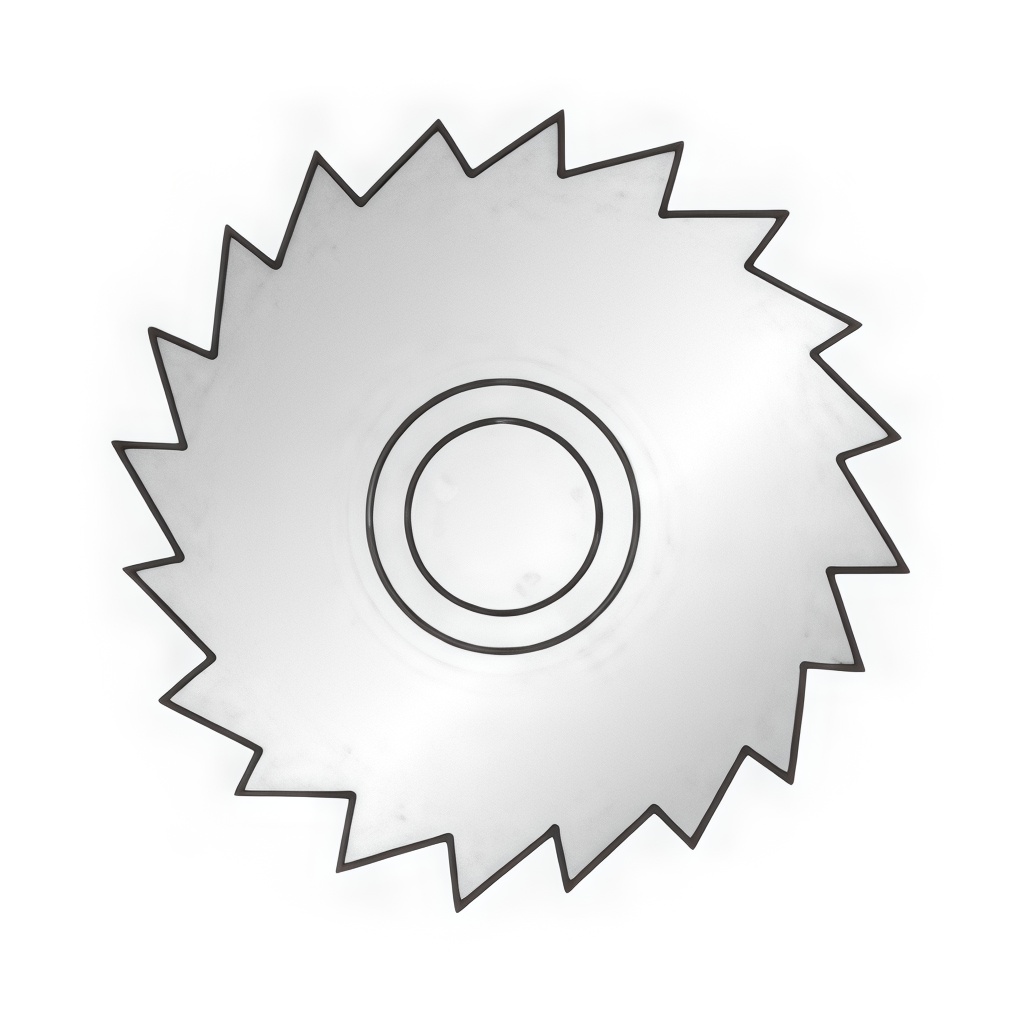

  • Cutting

    Use a manual circular saw or a high-speed small motor circular saw to cut. During cutting, input compressed air to blow away the aluminum chaff powder.

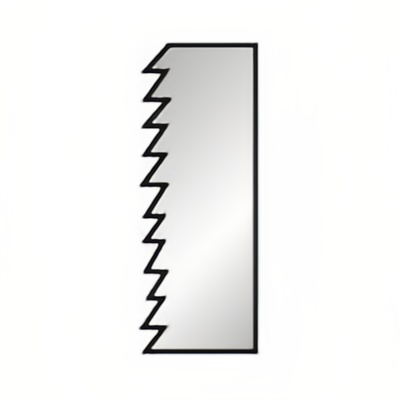

  • Cutting with straight saw or shuttle saw

    Under the premise of protecting the board surface from damage, cutting is carried out and the bran and powder are blown away with a compressed air blower.

  • Keyhole and eyelet enlargement

    Use an iron drill bit to drill at high speed. Do not use lubricants to avoid damaging the installation surface. At the same time, use compressed air to remove the bran powder. Blow away the foam.

  • Planing Edges

    Use an electric planer or metal file to clean the rough edges after cutting. Pay close attention to ensure that no bran or powder remains on the board surface.

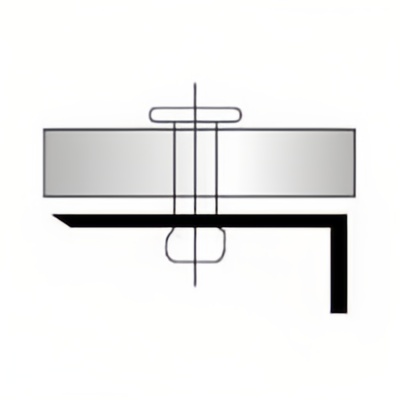

  • Riveting

    Connect with pot nails or core nails

  • Cold bending

    It is rolled and pressed using a special- shaped mold machine and cannot be heated. When pressing, use a protective pad to avoid damage to the board surface.

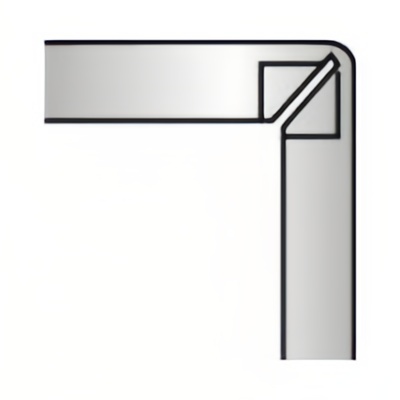

  • Inflection

    First, pad the aluminum-plastic panel with something, and then use electric or foot- operated shears (remove the knife) to bend it. When bending, please pay attention to distinguish the bottom surface and the rough edges.

  • Cold Inflection

    First mill a small V-shaped groove with a width of R-2-8mm, and then perform folding.

  • Glue bonding

    Use metal adhesive to bond as needed, but be careful not to bond the plastic parts.

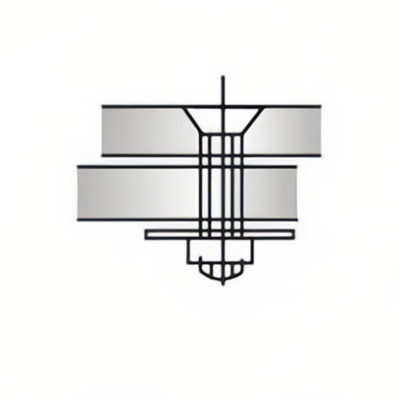

  • Screw connection

    Use stainless steel self-tapping screws or stainless steel wood screws. If the area is large, washers should be used for composite parts.

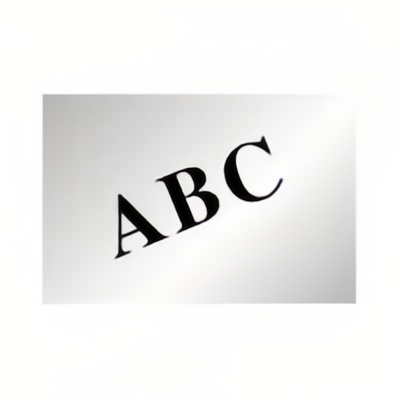

  • Silk screen printing

    Print the design with a suitable screen ink

  • Welding

    Use heat sealing equipment to slot and connect.

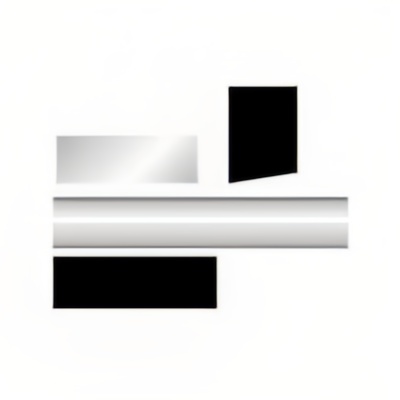

  • Clamping method

    Use the required aluminum or stainless steel metal protrusion, clamp it and then tighten it with pot nails.

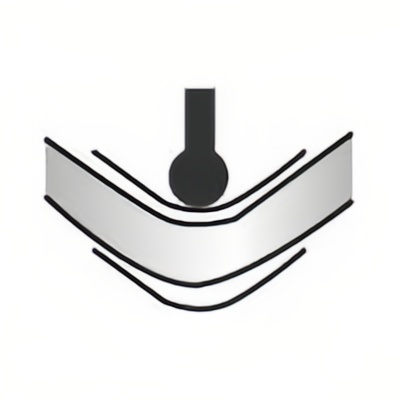

  • Cold Roll Pressing

    Use an adjustable press and smooth round rollers to roll and form. Be careful not to damage the surface during operation.

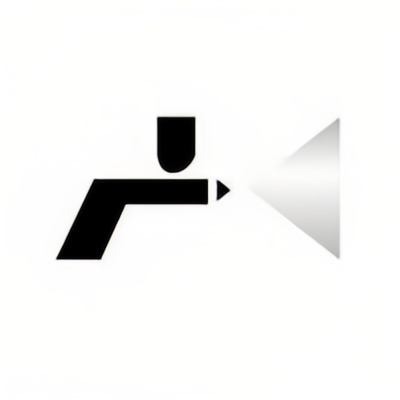

  • Spray paint

    Use  spray  painting  to  spray  out  the required  pattern.  The  maximum  drying temperature cannot exceed 600C or spray paint according to the technical data of the paint factory.
